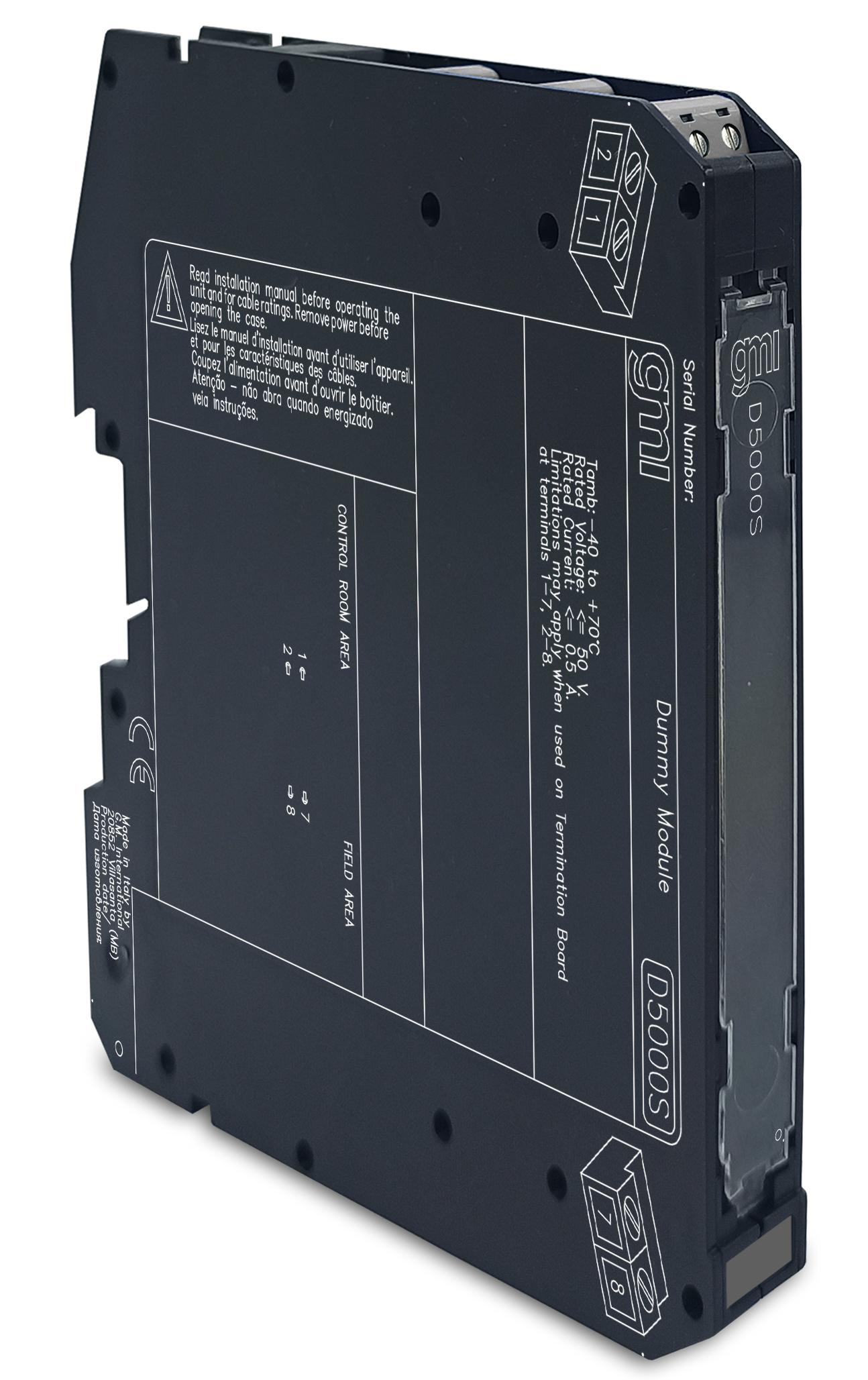

D5000D

Dummy Module

The Dummy Module D5000 module provides termination for unused cable cores. It may also work as place holder for future installation developments.

ACTIVE

Product lifecycle policy (EN)

Input/Output
Voltage rating	50 V.
Environmental conditions
Operating temperature	temperature limits –40 to +70 °C.
Storage temperature	temperature limits –45 to +80 °C.
Mounting
Type	DIN-Rail 35 mm, or on custom Term. Board.
Weight	about 100 g.
Connection	by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG).
Dimensions	Width 12.5 mm, Depth 123 mm, Height 120 mm.
