SIMATIC CFU CIO HART card Integrates instrumentation seamlessly via free configurable I/O channels supporting all signal types. Decoupled hardware and software engineering allows wiring of the I/Os in any project cycle (late binding). Perfectly integrated and compatible with SIMATIC PCS 7, PCS neo, TIA Portal and STEP 7.
GMI performed a complete test with the new X1 Series, specifically the Universal (Ex) Isolators X1-IS-UNI-01-S for interfacing signal in Hazardous Area such Analog Input, Analog Output, Digital Input, Digital Output, ALL-IN-ONE module. Testing grants complete compatibility including transparency for Hart Protocol and Line Fault Detection, such open circuit or short circuit.
Beside the universal modules the X1 Series offers:
• dedicated Ex Isolators for AI-AO-DI-DO-Temperature (TC, RTD, NTC)
• dedicated Non-Ex Isolators for AI-AO-DI-DO-Temperature (TC, RTD, NTC)
• Safety Relay
• Pass-through modules

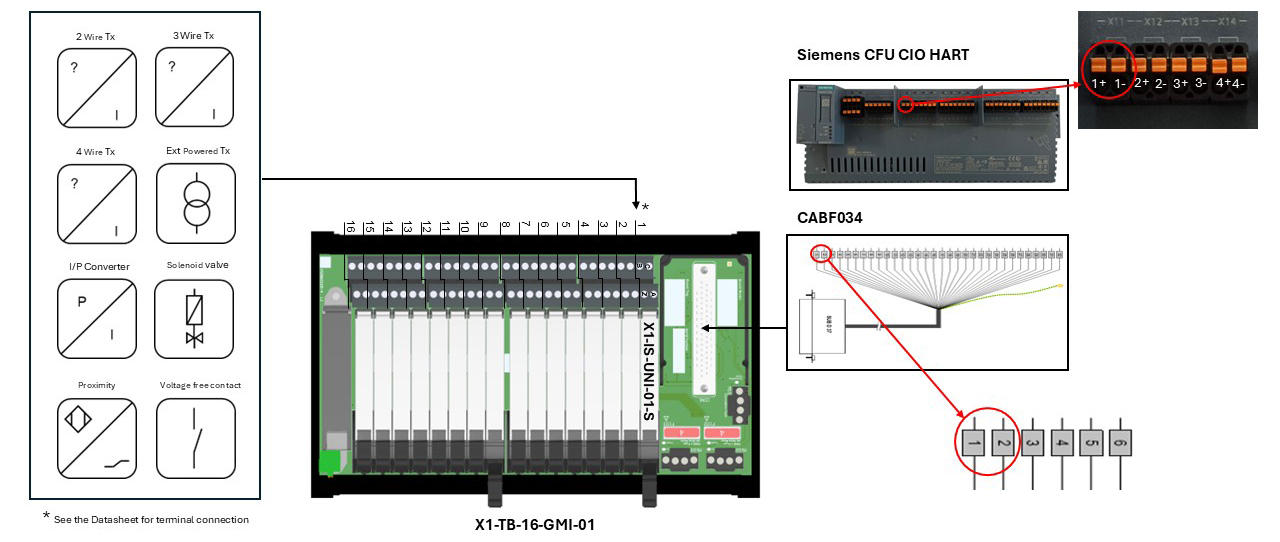

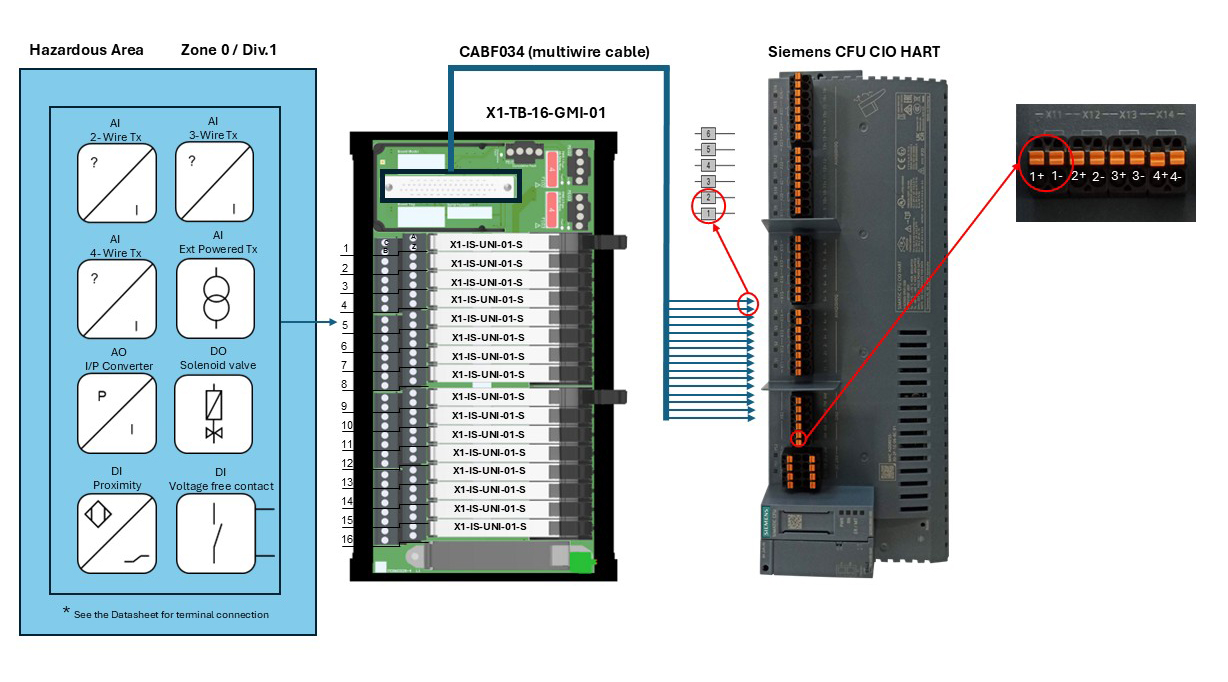

The GMI X1 Series can be interfaced to the SIMATIC CFU CIO HART card via prewired system cable CABF034.
