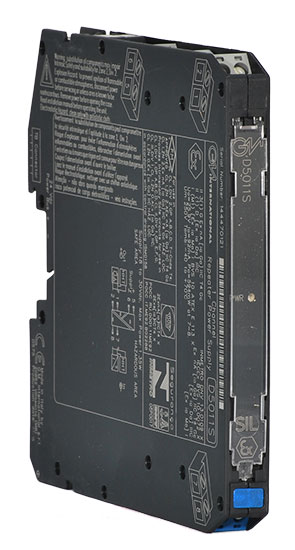

D5011S
I.S. SIL3 2-Wire HART® Transmitter Power Supply

The Repeater Power Supply D5011 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. The circuit allows bi-directional communication signals, for HART® devices.

FEATURES

  • SIL 3 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 4-20 mA Passive Input, Source Output
  • HART® compatible
  • Input and Output short circuit proof
  • High Accuracy
  • Three port isolation, Input/Output/Supply
  • High Density, two channels per unit

Discover D5000


STATUS


   ACTIVE
Product lifecycle policy (EN)

CHANNELS

1

Request a free and personalized quotation!

Contact us

Technical Data


Supply
Voltage 24 Vdc nom (18 to 30 Vdc), reverse polarity protected
Current Consumption 45 mA @ 24 Vdc with 20 mA out, typical.
Power Dissipation 0.675 W @ 24 Vdc with 20 mA out, typical.

Input
Type 4 to 20 mA (2 wires Tx current limited ≈ 25 mA), reading range 0 to 24 mA.
Transmitter line voltage 15.0 V typical, 14.5 V minimum, @ 20 mA.

Output
Type 4 to 20 mA, on max. 550 Ω load in source mode (typical 12 V compliance).
Response time 5 ms (0 to 100 % step change).

Performance
Ref. Conditions 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.
Calibration accuracy ≤ ± 0.1 % FSR.
Linearity accuracy ≤ ± 0.05 % FSR.
Temp. influence ≤ ± 0.01 % FSR on zero/span for a 1 °C change.

Isolation
Test Voltage I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V.

Environmental conditions

Operating temperature temperature limits –40 to +70 °C.
Storage temperature temperature limits –45 to +80 °C.

Safety description
Equipment Associated apparatus and non-sparking electrical equipment.
Safety parameters Uo = 25.9 V, Io = 92 mA, Po = 594 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.

Mounting
Type DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.
Weight about 125 g
Connection by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).
Dimensions Width 12.5 mm, Depth 123 mm, Height 120 mm.

Data Sheet


Datasheet of D5011 ( EN | RU | DE | FR | ES | IT | CN | JA | PT )
D5000 Series Common Specifications and Dimensional Drawing ( EN )

Instruction Manual


Instruction Manual D5011 ( EN )
EAC safety instruction manual for D5000 series ( EN | RU )
Instruction Manual D5000-D5200 Series ( EN )
ATEX safety instruction manual for D5000 series ( EN | IT )
Safety Manual D5011 series ( EN )
CCC Ex safety instruction manual for D5000 series ( EN | CN )
Ex safety instruction manual for D5000 series ( RU )
INMETRO safety instruction manual for D5000 series ( PT )
UL Control Drawing D5011 series ( EN )
FM, FM-C Control Drawing D5011 series ( EN )

Certifications


Type Description Area Number Issued by Issue Date
ATEX DEKRA ATEX D5000 Series English Certificate ( EN ) Europe BVS 10 ATEX E 113 X DEKRA 2022-04-12
EMC D5000/D6000 EAC EMC Declaration of Conformity ( RU ) Eurasian Community ЕАЭС N RU Д-IT.PA08.B.82326/24 CONTROL 2024-09-26
Ex D5000 CCC certificate for China ( EN ) China 2020322316000978 NEPSI 2024-03-22
Ex CCOE Indian Approval for D5000 Series ( EN ) India P424465 PESO 2020-07-28
Ex CML D5011, D5014, D5020, D5030, D5031, D5032, D5034, D5048, D5049 certificate for Japan ( EN ) Japan CML 22JPN1585X CML 2022-10-28
Ex EAC Ex Certificate for D5000 Series ( RU ) Eurasian Community ЕАЭС RU С-IT.AA87.В.01310/24 CCVE 2024-06-13
Ex Emirates Certificate of Conformity D5000 ( EN ) United Arab Emirates 24-05-109026/E24-04-112697/NB0002 SGS 2024-05-02
Ex UL-cUL D5011, D5014, D5034 Divisions and Zones ( EN ) North America 20150713-E222308 UL 2015-07-13
Ex FM No.3046304-3046304C Certificate D5000 Series ( EN ) North America 3046304-3046304C FM 2013-04-09
Ex INMETRO Certificate DNV 13.0109 X for D5000 ( EN ) Brazil DNV 13.0109 X DNV 2022-12-10
FSM TUV IT 22 SIL 0093 Functional Safety Certificate ( EN ) International TUV IT 22 SIL 0093 TUV_SUD 2022-07-25
IECEx DEKRA IECEx for D5000 Series ( EN ) International IECEx BVS 10.0072X DEKRA 2022-04-14
Maritime KR Maritime Certificate D5000 Series ( EN ) International MIL20769-EL002 KR 2024-06-26
Maritime DNV Maritime Certificate TAA00001U0 for D5000 series for website ( EN ) International TAA00001U0 DNV-GL 2024-04-02
Maritime NK Maritime Certificate TA21565M for D5011 series ( EN ) International TA21565M ClassNK 2021-11-17
Metrological Metrological Certificate Belarus for D5000/D6000 Series ( BE ) Belarus 15507 ROSSTANDART 2022-08-30
Metrological Metrological Certificate Kazakhstan for D5000/D6000 series ( KK ) Kazakhstan 1152 KMC 2021-08-05
Metrological Metrological Certificate Russia for D5000/D6000 series ( RU ) Russia OC.C.32.004.A n. 77881 ROSSTANDART 2020-07-28
SIL TUV C-IS-236198-04 SIL Certificate Summary ( EN ) International C-IS-236198-04 TUV_SUD 2022-10-14

Declarations of Conformity


EU Declaration of Conformity for D5000 barriers ( EN | IT )
EU Declaration of Conformity for RoHS, ASBESTOS. ( EN )
Declaration of Conformity G3 compliance ( EN )
Declaration of Conformity (IECEx) for D5011, D5014, D5020, D5031, D5034, D5048, D5049. ( EN )

Dimensions


Image of D5011_size

Connections


Drawings


2d_drawing_D5000_dwg ( EN )
3d_drawing_D5000_dwg ( EN )
3d_drawing_D5000_stp ( EN )

RELATED PRODUCTS

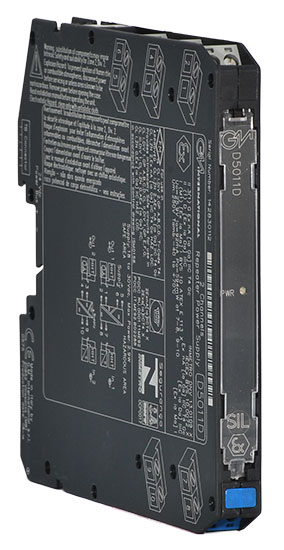

D5011D
