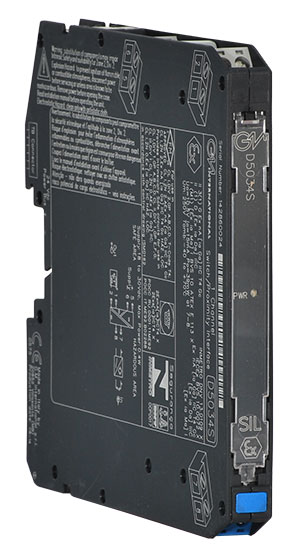

D5034S
I.S. SIL3 Line-Fault Transp. Switch/Prox. Repeater

The Switch/Proximity Detector Repeater D5034 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. The unit can be connected to switches or proximity detectors, located in Hazardous Area, and repeats the input current to the output in Safe Area. DCS/PLC Digital Input cards compatible with NAMUR devices can detect the status/fault of proximity sensors or switches equipped with end of line resistors, in transparent mode, through the module.

FEATURES

  • SIL 3/ SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 2 fully independent channels
  • Field fault mirroring to PLC NAMUR DI
  • High Accuracy
  • Three port isolation, Input/Output/Supply
  • High Density, two channels per unit

Discover D5000


STATUS


   ACTIVE
Product lifecycle policy (EN)

CHANNELS

1

Request a free and personalized quotation!

Contact us

Technical Data


Supply
Voltage 24 Vdc nom (18 to 30 Vdc), reverse polarity protected.
Current Consumption 15 mA @ 24 Vdc with short circuit input, typical.
Power Dissipation 0.36 W @ 24 Vdc with short circuit input, typical.

Input
Current range ≥ 0.1 mA to ≤ 8.0 mA.
Input equivalent source 8 V 1 kΩ typical (8 V no load, 8 mA short).

Output
Type 0.1 to 8.0 mA in sink mode, V max. 30 V, current limited ≈ 8 mA, repeats input current level.
Response time 1 ms (0 to 100 % step change).
Power Dissipation 0.2 W @ 24 Vdc with short circuit input, typical.

Performance
Ref. Conditions 24 V supply, 23 ± 1 °C ambient temperature.
Calibration accuracy ≤ ± 0.25 % FSR.
Linearity accuracy ≤ ± 0.25 % FSR.
Temp. influence ≤ ± 0.03 % FSR on zero/span for a 1 °C change.

Isolation
Test Voltage I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/ I.S In 500 V; Out/Supply 500 V; Out /Out 500 V.

Environmental conditions

Operating temperature temperature limits –40 to +70 °C.
Storage temperature temperature limits –45 to +80 °C.

Safety description
Equipment Associated apparatus and non-sparking electrical equipment.
Safety parameters Uo = 10.5 V, Io = 15 mA, Po = 39 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.

Mounting
Type DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.
Weight about 115 g.
Connection by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).
Dimensions Width 12.5 mm, Depth 123 mm, Height 120 mm.

Data Sheet


Datasheet of D5034 ( EN | RU | FR | DE | ES | IT | CN | JA | PT )
D5000 Series Common Specifications and Dimensional Drawing ( EN )

Instruction Manual


Instruction Manual D5034 ( EN )
EAC safety instruction manual for D5000 series ( EN | RU )
Instruction Manual D5000-D5200 Series ( EN )
ATEX safety instruction manual for D5000 series ( EN | IT )
CCC Ex safety instruction manual for D5000 series ( EN | CN )
Ex safety instruction manual for D5000 series ( RU )
INMETRO safety instruction manual for D5000 series ( PT )
UL Control Drawing D5034 ( EN )
FM, FM-C Control Drawing D5034 ( EN )

Certifications


Type Description Area Number Issued by Issue Date
ATEX DEKRA ATEX D5000 Series English Certificate ( EN ) Europe BVS 10 ATEX E 113 X DEKRA 2022-04-12
EMC D5000/D6000 EAC EMC Declaration of Conformity ( RU ) Eurasian Community ЕАЭС N RU Д-IT.PA08.B.82326/24 CONTROL 2024-09-26
Ex D5000 CCC certificate for China ( EN ) China 2020322316000978 NEPSI 2024-03-22
Ex CCOE Indian Approval for D5000 Series ( EN ) India P424465 PESO 2020-07-28
Ex CML D5011, D5014, D5020, D5030, D5031, D5032, D5034, D5048, D5049 certificate for Japan ( EN ) Japan CML 22JPN1585X CML 2022-10-28
Ex EAC Ex Certificate for D5000 Series ( RU ) Eurasian Community ЕАЭС RU С-IT.AA87.В.01310/24 CCVE 2024-06-13
Ex Emirates Certificate of Conformity D5000 ( EN ) United Arab Emirates 24-05-109026/E24-04-112697/NB0002 SGS 2024-05-02
Ex FM No.3046304-3046304C Certificate D5000 Series ( EN ) North America 3046304-3046304C FM 2013-04-09
Ex UL-cUL D5011, D5014, D5034 Divisions and Zones ( EN ) North America 20150713-E222308 UL 2015-07-13
Ex INMETRO Certificate DNV 13.0109 X for D5000 ( EN ) Brazil DNV 13.0109 X DNV 2022-12-10
FSM TUV IT 22 SIL 0093 Functional Safety Certificate ( EN ) International TUV IT 22 SIL 0093 TUV_SUD 2022-07-25
IECEx DEKRA IECEx for D5000 Series ( EN ) International IECEx BVS 10.0072X DEKRA 2022-04-14
Maritime KR Maritime Certificate D5000 Series ( EN ) International MIL20769-EL002 KR 2024-06-26
Maritime DNV Maritime Certificate TAA00001U0 for D5000 series for website ( EN ) International TAA00001U0 DNV-GL 2024-04-02
SIL TUV C-IS-236198-04 SIL Certificate Summary ( EN ) International C-IS-236198-04 TUV_SUD 2022-10-14

Declarations of Conformity


EU Declaration of Conformity for D5000 barriers ( EN | IT )
EU Declaration of Conformity for RoHS, ASBESTOS. ( EN )
Declaration of Conformity G3 compliance ( EN )
Declaration of Conformity (IECEx) for D5011, D5014, D5020, D5031, D5034, D5048, D5049. ( EN )

Dimensions


Image of D5034_size

Connections


Drawings


2d_drawing_D5000_dwg ( EN )
3d_drawing_D5000_dwg ( EN )
3d_drawing_D5000_stp ( EN )

RELATED PRODUCTS

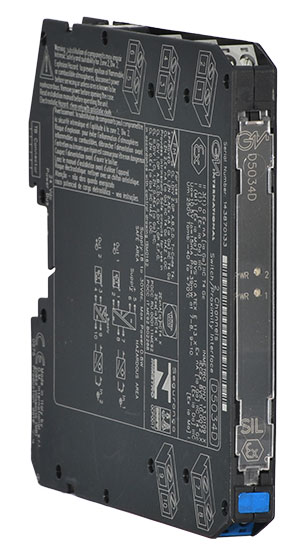

D5034D
