D5040S

  1. Products
  2. Intrinsically Safe Isolators
  3. Digital Output
D5040S

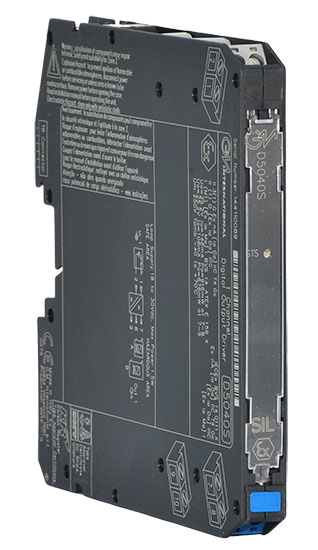

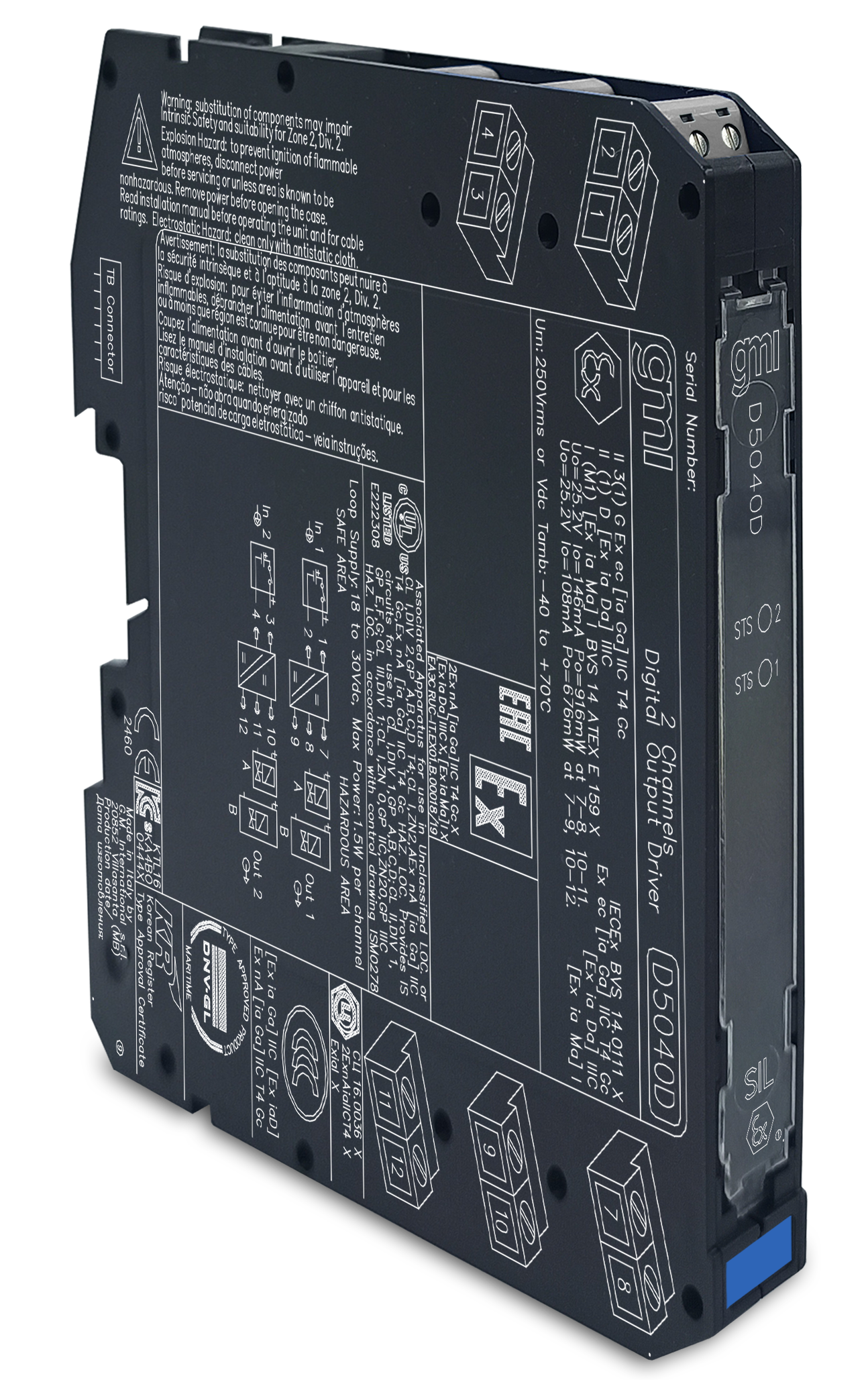

I.S. SIL3 Loop-Powered Digital Output Driver

The Loop-Powered Digital Output Driver D5040 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It can drive solenoid valves, visual or audible alarms to alert a plant operator, or other process control devices in Hazardous Area from control signals located in Safe Area. They can also be used as switchable supplies to power measuring or process control equipments. For each channel two basic output circuits are selectable, with different safety parameters, to interface the majority of devices on the market.

FEATURES

  • SIL 3 / SC 3
  • Output to Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 2 fully independent channels
  • Loop powered for NE loads
  • Output short circuit proof
  • Two port isolation, Input/Output
  • High Density, two channels per unit

Discover D5000


STATUS


   ACTIVE
Product lifecycle policy (EN)

CHANNELS

1

Request a free and personalized quotation!

Contact us

Technical Data


Input
Type Loop powered control signal.
Voltage 24 Vdc nom (18 to 30 Vdc), reverse polarity protected.
Current Consumption 55 mA @ 24 Vdc with 40 mA output, typical.
Power Dissipation 0.85 W @ 24 Vdc with 45 mA output, typical.

Output
Short circuit current ≥ 45 mA
Response time ≤ 75 ms.
Output diagram refer to Instruction Manual.

Isolation
Test Voltage I.S. Out/In 1.5 kV; Out/Out 500 V; In/In 500 V.

Environmental conditions

Operating temperature temperature limits –40 to +70 °C
Storage temperature temperature limits –45 to +80 °C.

Safety description
Equipment Associated apparatus and non-sparking electrical equipment.
Safety parameters Uo = 25.2 V, Io = 146 mA, Po = 916 mW at terminals 7-8, 10-11. Uo = 25.2 V, Io = 108 mA, Po = 676 mW at terminals 7-9, 10-12. Refer to Instruction Manual for more details. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.

Mounting
Type DIN-Rail 35 mm, or on custom Term. Board.
Weight about 110 g.
Connection by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG).
Dimensions Width 12.5 mm, Depth 123 mm, Height 120 mm.

Data Sheet


Datasheet of D5040 ( EN | RU | DE | ES | IT | CN | JA | PT | FR )
D5000 Series Common Specifications and Dimensional Drawing ( EN )

Instruction Manual


Instruction Manual D5040 ( EN )
EAC safety instruction manual for D5000 series ( EN | RU )
Instruction Manual D5000-D5200 Series ( EN )
ATEX safety instruction manual for D5000 series ( EN | IT )
CCC Ex safety instruction manual for D5000 series ( EN | CN )
Ex safety instruction manual for D5000 series ( RU )
UL Control Drawing D5040 ( EN )

Certifications


Type Description Area Number Issued by Issue Date
ATEX DEKRA ATEX D5040, D5240 Series English Certificate ( EN ) Europe BVS 14 ATEX E 159 X DEKRA 2022-05-06
EMC D5000/D6000 EAC EMC Declaration of Conformity ( RU ) Eurasian Community ЕАЭС N RU Д-IT.PA08.B.82326/24 CONTROL 2024-09-26
Ex D5000 CCC certificate for China ( EN ) China 2020322316000978 NEPSI 2024-03-22
Ex EAC Ex Certificate for D5000 Series ( RU ) Eurasian Community ЕАЭС RU С-IT.AA87.В.01310/24 CCVE 2024-06-13
Ex Emirates Certificate of Conformity D5040, D5240 series ( EN ) United Arab Emirates 24-10-127920/E24-10-132546/NB0002 SGS 2024-10-22
Ex UL-cUL D5040, D5048, D5049 Divisions and Zones ( EN ) North America 20160404-E222308 UL 2016-04-04
Ex Korea KCs certificate for D5040S ( KO ) South Korea 16-KA4BO-0443X KTL 2016-08-29
FSM TUV IT 22 SIL 0093 Functional Safety Certificate ( EN ) International TUV IT 22 SIL 0093 TUV_SUD 2022-07-25
IECEx DEKRA IECEx D5040, D5240 Series Certificate ( EN ) International IECEx BVS 14.0111X DEKRA 2022-05-30
Maritime KR Maritime Certificate D5000 Series ( EN ) International MIL20769-EL002 KR 2024-06-26
Maritime DNV Maritime Certificate TAA00001U0 for D5000 series for website ( EN ) International TAA00001U0 DNV-GL 2024-04-02
SIL TUV C-IS-236198-04 SIL Certificate Summary ( EN ) International C-IS-236198-04 TUV_SUD 2022-10-14

Declarations of Conformity


EU Declaration of Conformity for D5040, D5240 ( EN | IT )
EU Declaration of Conformity for RoHS, ASBESTOS. ( EN )
Declaration of Conformity G3 compliance ( EN )

Dimensions


Image of D5040_size

Connections


Drawings


2d_drawing_D5000_dwg ( EN )
3d_drawing_D5000_dwg ( EN )
3d_drawing_D5000_stp ( EN )
