X1-GW-01

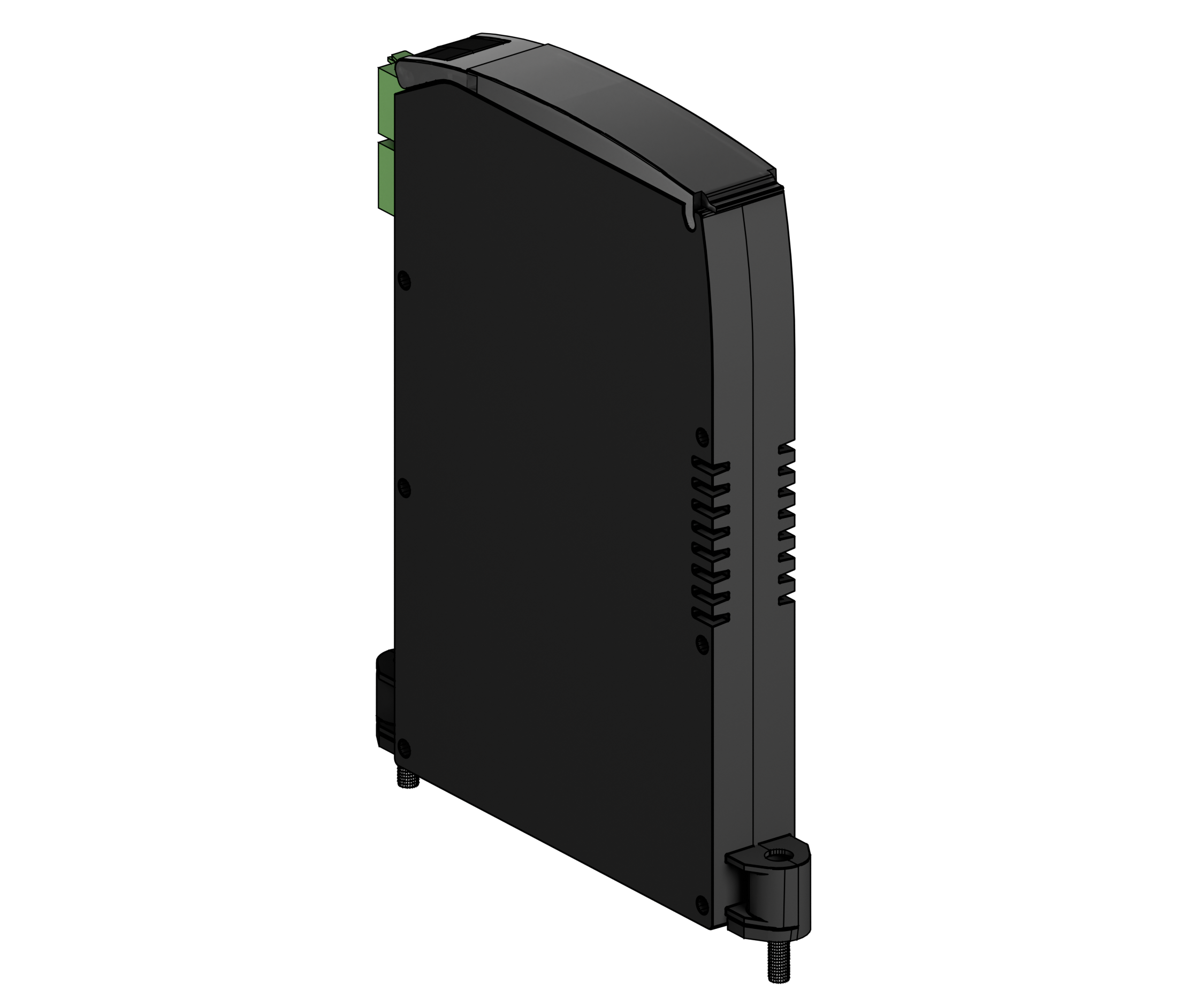

X1-Series Gateway for Module Configuration and Modbus TCP/IP or RTU RS485 Data Acquisition

Gateway model X1-GW-01 is dedicated to X1 Series. It allows X1-TB board and X1 module Identification, as well as X1 smart module Configuration, Monitor & Diagnostics, and more sophisticated functions (Mission Time supervision, Proof Time testing for functional safety on specific modules, etc.). Up to 16(8) X1 modules can be accessed through a single X1-GW-01 Gateway installed on the same X1-TB. Gateway connectivity is possible point-to-point to a PC/IPC running SWCX1 dedicated software, or through industrial bus, MODBUS TCP/IP through RJ45 port or MODBUS RTU on RS485. A full network of X1 modules can be surveilled and controlled from a single access point, through different Gateways with dedicated addresses and external switches. Access to the Gateway can be limited through multiuser profiles with individual passwords, while an external boot loader allows firmware revision upgrade.

FEATURES

  • Up to 16 channels (expandable through different X1-GW-01)
  • Configuration, Monitor & Diagnostics functions
  • External boot loader for firmware revision upgrade
  • Multi-profile access, with passwords and security related functions
  • Three port isolation, Module Interface/User Interface/Supply

STATUS


   ACTIVE
Product lifecycle policy (EN)

Request a free and personalized quotation!

Contact us

Technical Data


General
Power Dissipation 0.65 W @ 24 Vdc, typical.

Supply
Voltage 24 Vdc nom (18 to 28.8 Vdc), reverse polarity protected, provided through X1-TB.
Current Consumption 27 mA @ 24 Vdc, typical.

User interface
Type The Gateway can be connected through different interfaces:
1) point-to-point through USB-C connector;
2) industrial bus, MODBUS TCP/IP through RJ45 connector or MODBUS RTU through RS485.
Note that Gateway communication is limited to a single interface (session) at a time.

Module interface
Type The Gateway must be installed on X1-TB board, providing proprietary serial communication to X1 modules.
Max number of channels 16.

Isolation
Test Voltage Module Interface/User Interface 500 V; Module Interface/Power Supply 500 V; User Interface/Power Supply 500 V.

Environmental conditions

Operating temperature temperature limits –40 to +70 °C.
Storage temperature temperature limits –45 to +80 °C.

Mounting
Type On custom X1-TB through captive screws.
Weight about 105 g.
Dimensions Width 16/20 mm, Depth 102 mm, Height 120 mm.

Data Sheet


Datasheet of X1-GW-01 ( EN )

Instruction Manual


Instruction Manual SWC X1 ( EN )
Instruction Manual X1 Series ( EN )
Instruction Manual of X1-GW-01 ( EN )

Declarations of Conformity


EU Declaration of Conformity of X1-GW-01 ( EN | IT )

Dimensions


Image of X1-GW size

Connections


Software


SWCX1 Configuration Software for X1 Modules ( EN )
Instruction Manual SWC X1 ( EN )
