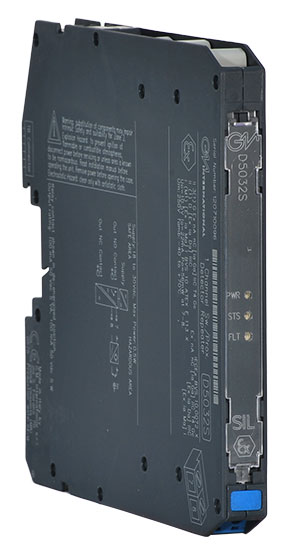

D5032S
I.S. SIL3 Switch/Proximity Relay-Out Repeater

The Switch/Proximity Detector Repeater D5032 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors, located in Hazardous Area, and repeats the input state to a relay contact in Safe Area. The selectable fault detection circuit is available for proximity sensors or switches equipped with end of line resistors. In the double-channel model, the second output can be configured to repeat the second input, to duplicate the first input or to report the first input fault. If needed, the output can also be inverted.

FEATURES

  • SIL 3 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 2 fully independent channels
  • Field open and short circuit detection
  • In-field programmability by DIP Switch
  • Three port isolation, Input/Output/Supply
  • High Density, two channels per unit

Discover D5000


STATUS


   ACTIVE
Product lifecycle policy (EN)

CHANNELS

1

Request a free and personalized quotation!

Contact us

Technical Data


Supply
Voltage 24 Vdc nom (18 to 30 Vdc), reverse polarity protected.
Current Consumption 18 mA @ 24 Vdc with short circuit input and relay energized, typical.
Power Dissipation 0.45 W @ 24 Vdc with short circuit input and relay energized, typical.

Input
Input switching current levels ON ≥ 2.1 mA, OFF ≤ 1.2 mA.
Fault current levels open fault ≤ 0.2 mA, short fault ≥ 6.8 mA
Input equivalent source 8 V 1 kΩ typical (8 V no load, 8 mA short).

Output
Type Voltage free SPST relay contact.
Contact material Ag Alloy (Cd free), gold plated.
Contact rating 100 mA 50 Vac 5 VA, 100 mA 50 Vdc 5 W (resistive load).
Contact min. switching current 1 mA.
Mechanical / electrical life 5 * 10⁶ / 1 * 10⁶ operation, typical.
Operate / release time 8 / 4 ms, typical.
Frequency response 10 Hz maximum.

Isolation
Test Voltage I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/ I.S In 500 V; Out/Supply 500 V; Out/Out 500 V.

Environmental conditions

Operating temperature temperature limits –40 to +70 °C.
Storage temperature temperature limits –45 to +80 °C.

Safety description
Equipment Associated apparatus and non-sparking electrical equipment.
Safety parameters Uo = 10.5 V, Io = 22 mA, Po = 56 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.

Mounting
Type On custom Term. Board.
Weight about 115 g.
Connection by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).
Dimensions Width 12.5 mm, Depth 123 mm, Height 120 mm.

Data Sheet


Datasheet of D5032 ( EN | RU | FR | DE | ES | IT | CN | JA | PT )
D5000 Series Common Specifications and Dimensional Drawing ( EN )

Instruction Manual


Instruction Manual D5032 ( EN )
EAC safety instruction manual for D5000 series ( EN | RU )
Instruction Manual D5000-D5200 Series ( EN )
ATEX safety instruction manual for D5000 series ( EN | IT )
Safety Manual D5032 ( EN )
CCC Ex safety instruction manual for D5000 series ( EN | CN )
Ex safety instruction manual for D5000 series ( RU )
INMETRO safety instruction manual for D5000 series ( PT )
UL Control Drawing D5030, D5031, D5032 ( EN )
FM, FM-C Control Drawing D5030, D5031, D5032 ( EN )

Certifications


Type Description Area Number Issued by Issue Date
ATEX DEKRA ATEX D5000 Series English Certificate ( EN ) Europe BVS 10 ATEX E 113 X DEKRA 2022-04-12
EMC D5000/D6000 EAC EMC Declaration of Conformity ( RU ) Eurasian Community ЕАЭС N RU Д-IT.PA08.B.82326/24 CONTROL 2024-09-26
Ex D5000 CCC certificate for China ( EN ) China 2020322316000978 NEPSI 2024-03-22
Ex CCOE Indian Approval for D5000 Series ( EN ) India P424465 PESO 2020-07-28
Ex CML D5011, D5014, D5020, D5030, D5031, D5032, D5034, D5048, D5049 certificate for Japan ( EN ) Japan CML 22JPN1585X CML 2022-10-28
Ex EAC Ex Certificate for D5000 Series ( RU ) Eurasian Community ЕАЭС RU С-IT.AA87.В.01310/24 CCVE 2024-06-13
Ex Emirates Certificate of Conformity D5000 ( EN ) United Arab Emirates 24-05-109026/E24-04-112697/NB0002 SGS 2024-05-02
Ex FM No.3046304-3046304C Certificate D5000 Series ( EN ) North America 3046304-3046304C FM 2013-04-09
Ex UL-cUL D5030, D5031, D5032 Divisions and Zones ( EN ) North America 20150805- E222308 UL 2015-08-05
Ex INMETRO Certificate DNV 13.0109 X for D5000 ( EN ) Brazil DNV 13.0109 X DNV 2022-12-10
FSM TUV IT 22 SIL 0093 Functional Safety Certificate ( EN ) International TUV IT 22 SIL 0093 TUV_SUD 2022-07-25
IECEx DEKRA IECEx for D5000 Series ( EN ) International IECEx BVS 10.0072X DEKRA 2022-04-14
Maritime KR Maritime Certificate D5000 Series ( EN ) International MIL20769-EL002 KR 2024-06-26
Maritime DNV Maritime Certificate TAA00001U0 for D5000 series for website ( EN ) International TAA00001U0 DNV-GL 2024-04-02
SIL TUV C-IS-236198-04 SIL Certificate Summary ( EN ) International C-IS-236198-04 TUV_SUD 2022-10-14

Declarations of Conformity


EU Declaration of Conformity for D5000 barriers ( EN | IT )
EU Declaration of Conformity for RoHS, ASBESTOS. ( EN )
Declaration of Conformity G3 compliance ( EN )

Dimensions


Image of D5032_size

Connections


Drawings


2d_drawing_D5000_dwg ( EN )
3d_drawing_D5000_dwg ( EN )
3d_drawing_D5000_stp ( EN )

RELATED PRODUCTS

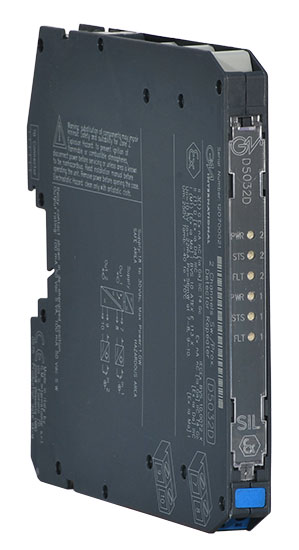

D5032D
