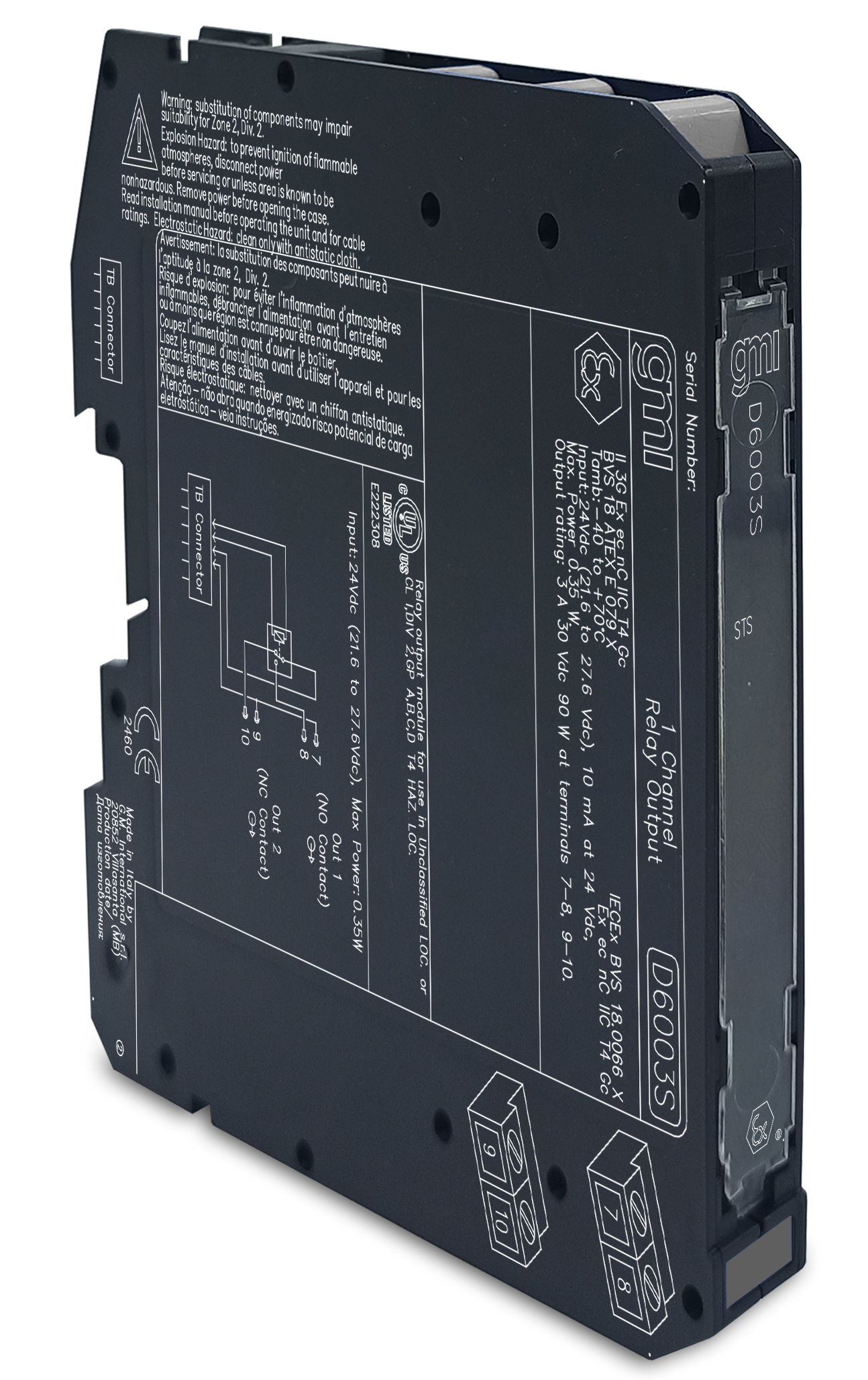

The D6003 is a relay module, which makes available a SPDT (Single Pole Double Throw) contact. The load is energized by the power supply of the Termination Board.
Supply |
|
| Voltage | 24 Vdc nom (20 to 30 Vdc), from Termination Board. |
Input |
|
| Type | 24 Vdc nom (21.6 to 27.6 Vdc). Relay coils are internally protected with suppressor diodes. |
| Current Consumption | 10 mA @ 24 Vdc, typical. |
| Power Dissipation | 0.24 W @ 24 Vdc, typical. |
Output |
|
| Type | One voltage free SPDT relay contact: NO contact at terminals 7-8 and NC contact at terminals 9-10. Terminals 7-8 (NO contact) are open when relay is de-energized, closed in energized relay condition. Terminals 9-10 (NC contact) are closed when relay is de-energized, open in energized relay condition. |
| Contact material | Ag Alloy (Cd free), gold plated. |
| Contact rating | 3 A (resistive load). |
| Contact min. switching current | 1 mA. |
| Contact inrush current | 6 A @ 24 Vdc. |
| Mechanical / electrical life | 5 * 10⁶ / 3 * 10⁴ operation, typical. |
| Operate / release time | 6 ms / 12 ms, including contact bounce time, typical. |
Environmental conditions |
|
| Operating temperature | temperature limits –40 to +70 °C. |
| Storage temperature | temperature limits -45 to +80 °C. |
Mounting |
|
| Type | On custom Term. Board. |
| Weight | about 100 g. |
| Connection | by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions | Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Datasheet of D6003 ( EN | RU | CN | FR | JA | IT | ES | DE | PT ) |
| Instruction Manual D6003 ( EN ) |
| Ex safety instruction manual for D6000 series ( EN | IT ) |
| CCC Ex safety instruction manual for D6000 series ( EN | CN ) |
| Ex safety instruction manual for D6000 series ( RU ) |
| Type | Description | Area | Number | Issued by | Issue Date |
|---|---|---|---|---|---|
| ATEX | DEKRA ATEX TB, D6000 Series English Certificate ( EN ) | Europe | BVS 18 ATEX E 079 X | DEKRA | 2021-03-04 |
| EMC | D5000/D6000 EAC EMC Declaration of Conformity ( RU ) | Eurasian Community | ЕАЭС N RU Д-IT.PA08.B.82326/24 | CONTROL | 2024-09-26 |
| Ex | D6000 CCC certificate for China ( EN ) | China | 2024322310005795 | NEPSI | 2024-01-22 |
| Ex | EAC Ex Certificate for D6000 and TB/TBE Series ( RU ) | Eurasian Community | ЕАЭС RU С-IT.AA87.В.00796/21 | CCVE | 2021-09-20 |
| Ex | UL-cUL D6001, D6002, D6003, D6004, D5099 Divisions ( EN ) | North America | 20191030-E222308 | UL | 2019-10-30 |
| IECEx | DEKRA IECEx TB, D6000 Series Certificate ( EN ) | International | IECEx BVS 18.0066X | DEKRA | 2021-03-15 |
| EU Declaration of Conformity for RoHS, ASBESTOS. ( EN ) |
| EU Declaration of Conformity for TB, TBE, D6000 (zone 2) ( EN | IT ) |
| Declaration of Conformity G3 compliance ( EN ) |
