D6004S

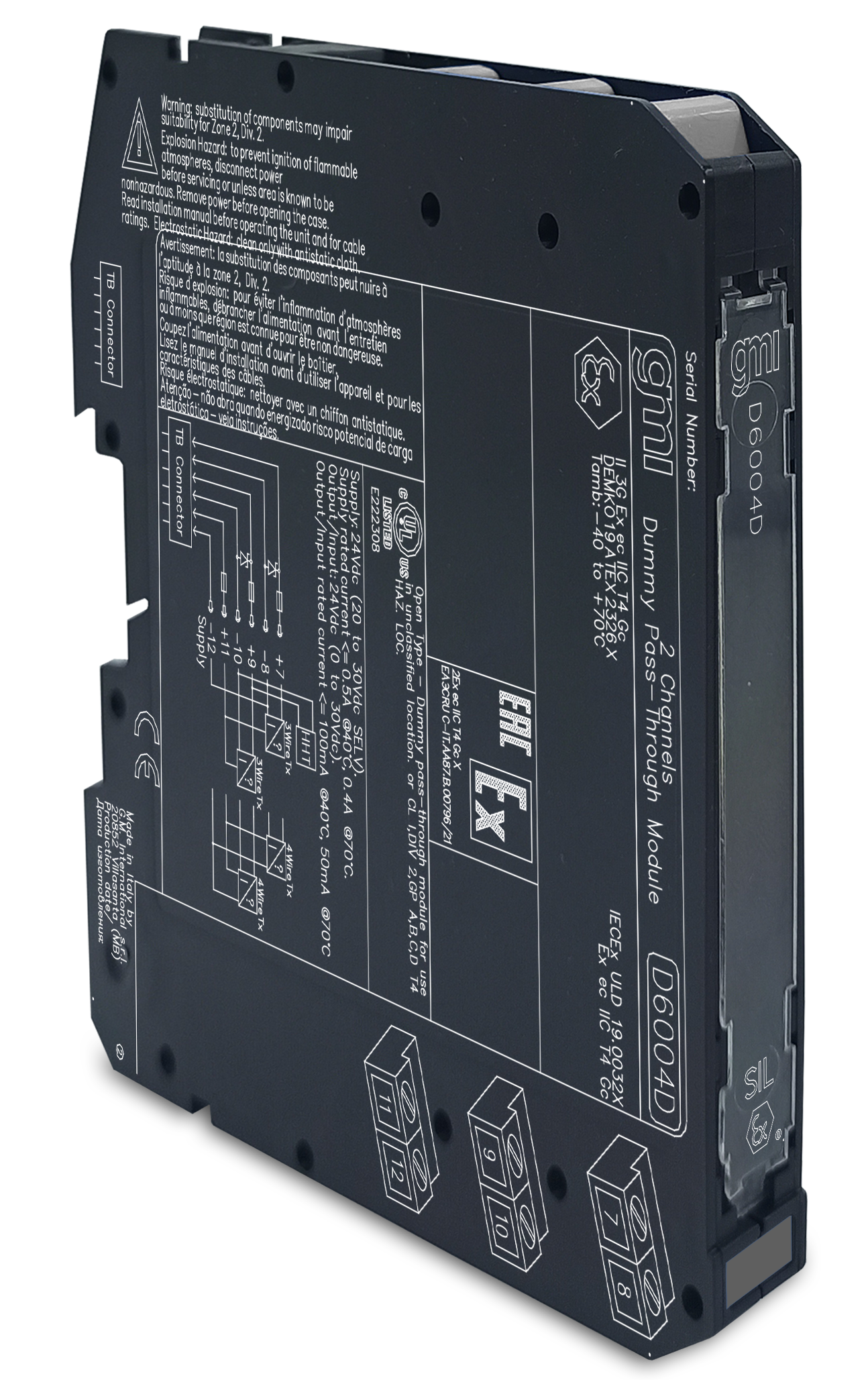

SIL3 Pass-Through Module

The Pass-Through D6004 module puts into direct connection the system with the field for a flexible marshalling. It is suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It also provides over-voltage and over-current protections and it supplies 3/4-wire transmitters through the power supply of the Termination Board.

FEATURES

  • SIL 3 / SC 3
  • Installation in Zone 2
  • Installation in Div. 2
  • Suitable for 2/3/4-wire transmitters
  • High Density, two channels per unit

Discover D6000


STATUS


   ACTIVE
Product lifecycle policy (EN)

Request a free and personalized quotation!

Contact us

Technical Data


Supply
Voltage 24 Vdc nom (20 to 30 Vdc), from Termination Board.
Current rating 0.5 A (resettable fuse protected), with linear derating down to 0.4 A, from 25 to 70 °C.
Max power dissipation 160 mW @ 400 mA.

Input/Output
Voltage rating 30 V.
Current rating 0.1 A (resettable fuse protected), with linear derating down to 0.05 A, from 25 to 70 °C.
Max power dissipation 8.6 mW/17.2 mW (D6004S/D6004D) @ 24 mA,
37.5 mW/75 mW (D6004S/D6004D) @ 50 mA.

Environmental conditions

Operating temperature temperature limits –40 to +70 °C.
Storage temperature temperature limits –45 to +80 °C.

Mounting
Type On custom Term. Board.
Weight about 100 g.
Connection by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG).
Dimensions Width 12.5 mm, Depth 123 mm, Height 120 mm.

Data Sheet


Datasheet of D6004 ( EN | FR | IT | PT | ES | DE | CN | JA )

Instruction Manual


Instruction Manual D6004 ( EN )
Safety Manual D6004 ( EN )
Ex safety instruction manual for D6000 series ( EN | IT )
CCC Ex safety instruction manual for D6000 series ( EN | CN )
Ex safety instruction manual for D6000 series ( RU )

Certifications


Type Description Area Number Issued by Issue Date
ATEX UL ATEX D6004 Series English Certificate ( EN ) Europe DEMKO 19 ATEX 2326X UL 2019-12-20
EMC D5000/D6000 EAC EMC Declaration of Conformity ( RU ) Eurasian Community ЕАЭС N RU Д-IT.PA08.B.82326/24 CONTROL 2024-09-26
Ex D6000 CCC certificate for China ( EN ) China 2024322310005795 NEPSI 2024-01-22
Ex EAC Ex Certificate for D6000 and TB/TBE Series ( RU ) Eurasian Community ЕАЭС RU С-IT.AA87.В.00796/21 CCVE 2021-09-20
Ex UL-cUL D6001, D6002, D6003, D6004, D5099 Divisions ( EN ) North America 20191030-E222308 UL 2019-10-30
FSM TUV IT 22 SIL 0093 Functional Safety Certificate ( EN ) International TUV IT 22 SIL 0093 TUV_SUD 2022-07-25
IECEx UL IECEx D6004 Series English Certificate ( EN ) International IECEx ULD 19.0032X UL 2019-12-20
SIL TUV C-IS-272994-01 SIL Certificate Summary ( EN ) International C-IS-272994-01 TUV_SUD 2022-10-14

Declarations of Conformity


EU Declaration of Conformity for D6004 ( EN | IT )
EU Declaration of Conformity for RoHS, ASBESTOS. ( EN )
Declaration of Conformity G3 compliance ( EN )
