D6032S

  1. Products
  2. Isolators
  3. Digital Input

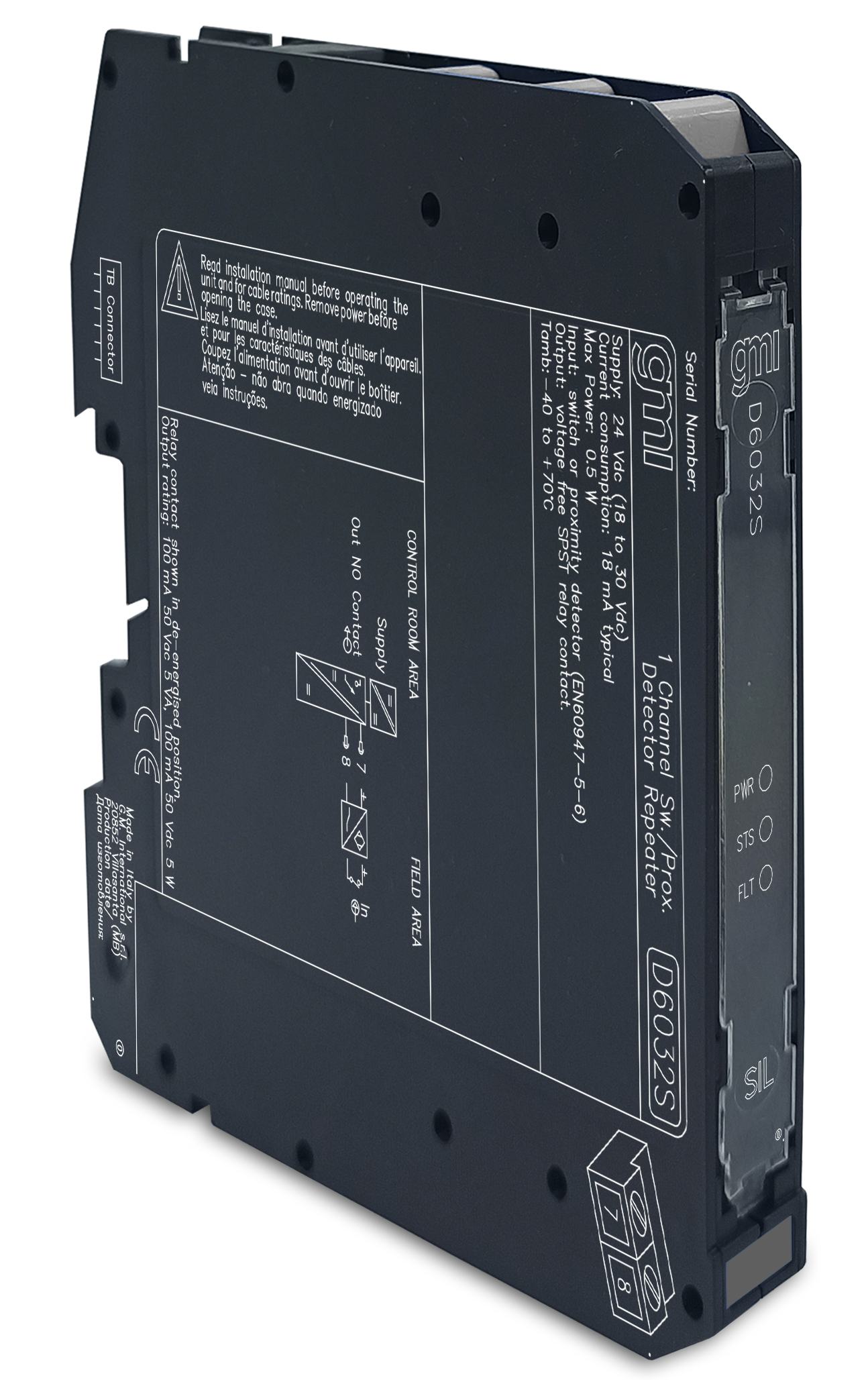

D6032S
SIL3 Switch/Proximity Relay-Out Repeater

The Switch/Proximity Detector Repeater D6032 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors and repeats the input state to a relay contact. The selectable fault detection circuit is available for proximity sensors or switches equipped with end of line resistors. In the double-channel model, the second output can be configured to repeat the second input, to duplicate the first input or to report the first input fault. If needed, the output can also be inverted.

FEATURES

  • SIL 3 / SC 3
  • 2 fully independent channels
  • Field open and short circuit detection
  • In-field programmability by DIP Switch
  • Three port isolation, Input/Output/Supply
  • High Density, two channels per unit

Discover D6000


STATUS


   ACTIVE
Product lifecycle policy (EN)

CHANNELS

1

Request a free and personalized quotation!

Contact us

Technical Data


Supply
Voltage 24 Vdc nom (18 to 30 Vdc), reverse polarity protected.
Current Consumption 18 mA @ 24 Vdc with short circuit input and relay energized, typical.
Power Dissipation 0.45 W @ 24 Vdc with short circuit input and relay energized, typical.

Input
Input switching current levels ON ≥ 2.1 mA, OFF ≤ 1.2 mA.
Fault current levels open fault ≤ 0.2 mA, short fault ≥ 6.8 mA
Input equivalent source 8 V 1 kΩ typical (8 V no load, 8 mA short).

Output
Type Voltage free SPST relay contact.
Contact material Ag Alloy (Cd free), gold plated.
Contact rating 100 mA 50 Vac 5 VA, 100 mA 50 Vdc 5 W (resistive load).
Contact min. switching current 1 mA.
Mechanical / electrical life 5 * 10⁶ / 1 * 10⁶ operation, typical.
Operate / release time 8 / 4 ms, typical.
Frequency response 10 Hz maximum.

Isolation
Test Voltage In/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.

Environmental conditions

Operating temperature temperature limits –40 to +70 °C.
Storage temperature temperature limits –45 to +80 °C.

Mounting
Type On custom Term. Board.
Weight about 115 g.
Connection by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).
Dimensions Width 12.5 mm, Depth 123 mm, Height 120 mm.

Data Sheet


Datasheet of D6032 ( EN | FR | RU | DE | ES | IT | CN | JA | PT )

Instruction Manual


Instruction Manual D6032 ( EN )
Safety Manual D6032 ( EN )

Certifications


Type Description Area Number Issued by Issue Date
EMC D5000/D6000 EAC EMC Declaration of Conformity ( RU ) Eurasian Community ЕАЭС N RU Д-IT.PA08.B.82326/24 CONTROL 2024-09-26
FSM TUV IT 22 SIL 0093 Functional Safety Certificate ( EN ) International TUV IT 22 SIL 0093 TUV_SUD 2022-07-25
SIL TUV C-IS-722134640-01 SIL Certificate Summary ( EN ) International C-IS-722134640-01 TUV_SUD 2022-10-14

Declarations of Conformity


EU Declaration of Conformity for D6000 series ( EN | IT )
EU Declaration of Conformity for RoHS, ASBESTOS. ( EN )
Declaration of Conformity G3 compliance ( EN )

Dimensions


Image of D6032_size

Connections


RELATED PRODUCTS

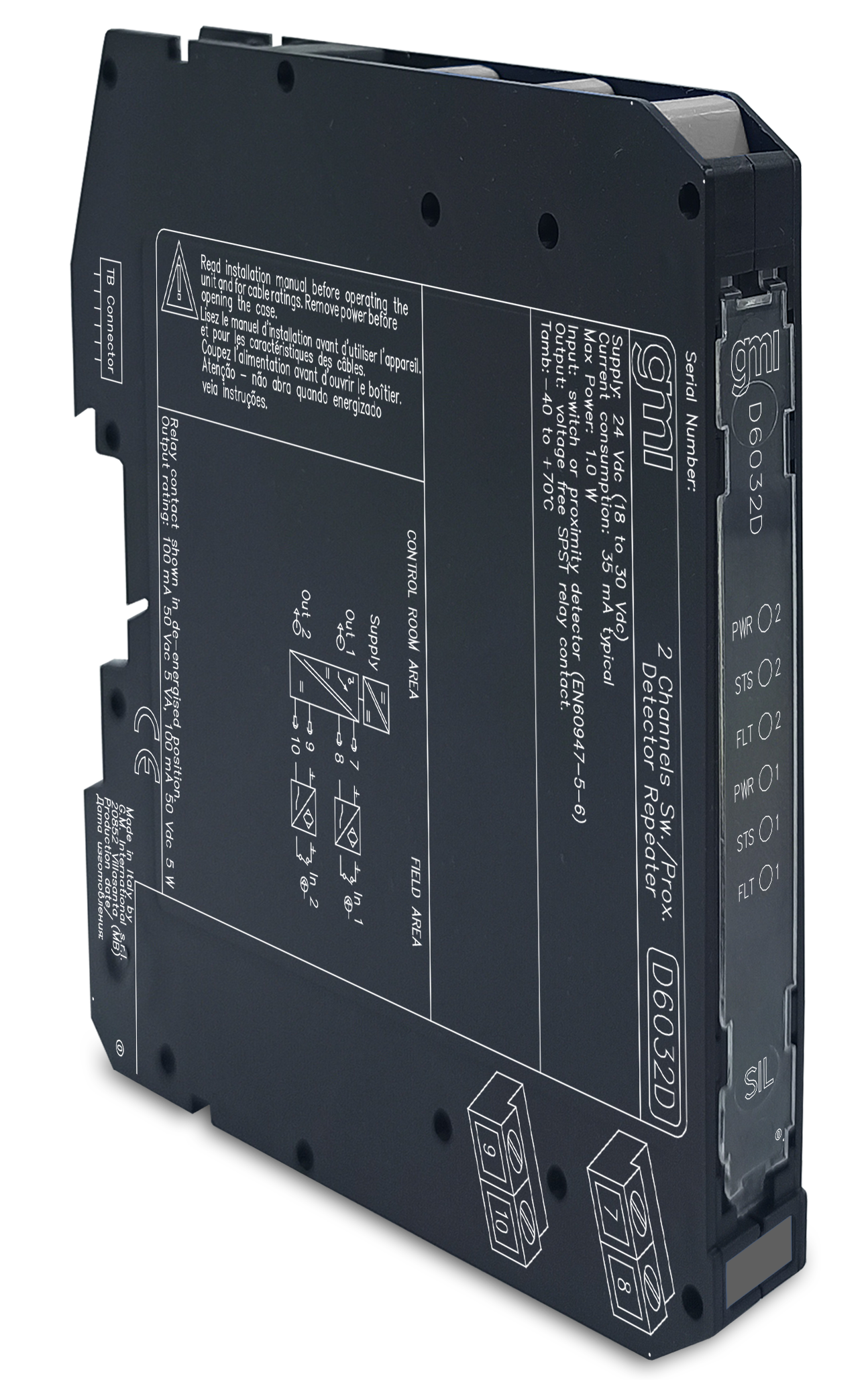

D6032D
