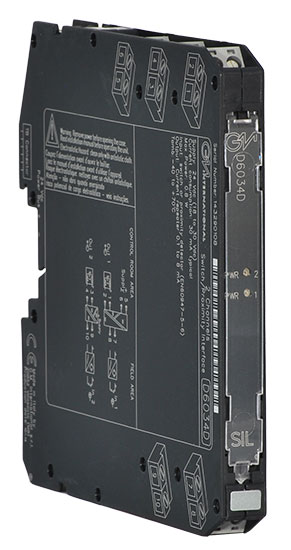

SIL3 Line-Fault Transp. Switch/Prox. Repeater

The Switch/Proximity Detector Repeater D6034 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. The unit can be connected to switches or proximity detectors and repeats the input current to the output. DCS/PLC Digital Input cards compatible with NAMUR devices can detect the status/fault of proximity sensors or switches equipped with end of line resistors, in transparent mode, through the module.

FEATURES

  • SIL 3/ SC 3
  • 2 fully independent channels
  • Field fault mirroring to PLC NAMUR DI
  • High Accuracy
  • Three port isolation, Input/Output/Supply
  • High Density, two channels per unit

Discover D6000


STATUS


   ACTIVE
Product lifecycle policy (EN)

CHANNELS

2

Request a free and personalized quotation!

Contact us

Technical Data


Supply
Voltage 24 Vdc nom (18 to 30 Vdc), reverse polarity protected.
Current Consumption 30 mA @ 24 Vdc with short circuit input, typical.
Power Dissipation 0.72 W @ 24 Vdc with short circuit input, typical.

Input
Current range ≥ 0.1 mA to ≤ 8.0 mA.
Input equivalent source 8 V 1 kΩ typical (8 V no load, 8 mA short).

Output
Type 0,4 W @ 24 Vdc with short circuit input, typical.
Response time 1 ms (0 to 100 % step change).
Power Dissipation 0.4 W (D6034D), 0.2 W (D6034S), @ 24 Vdc with short circuit input, typical.

Performance
Ref. Conditions 24 V supply, 23 ± 1 °C ambient temperature.
Calibration accuracy ≤ ± 0.25 % FSR.
Linearity accuracy ≤ ± 0.25 % FSR.
Temp. influence ≤ ± 0.03 % FSR on zero/span for a 1 °C change.

Isolation
Test Voltage In/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.

Environmental conditions

Operating temperature temperature limits –40 to +70 °C.
Storage temperature temperature limits –45 to +80 °C.

Mounting
Type DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.
Weight about 140 g.
Connection by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).
Dimensions Width 12.5 mm, Depth 123 mm, Height 120 mm.

Data Sheet


Datasheet of D6034 ( EN | FR | RU | DE | ES | IT | CN | JA | PT )

Instruction Manual


Instruction Manual D6034 ( EN )
Safety Manual D6034 ( EN )

Certifications


Type Description Area Number Issued by Issue Date
EMC D5000/D6000 EAC EMC Declaration of Conformity ( RU ) Eurasian Community ЕАЭС N RU Д-IT.PA08.B.82326/24 CONTROL 2024-09-26
FSM TUV IT 22 SIL 0093 Functional Safety Certificate ( EN ) International TUV IT 22 SIL 0093 TUV_SUD 2022-07-25
SIL TUV C-IS-722134640-01 SIL Certificate Summary ( EN ) International C-IS-722134640-01 TUV_SUD 2022-10-14

Declarations of Conformity


EU Declaration of Conformity for D6000 series ( EN | IT )
EU Declaration of Conformity for RoHS, ASBESTOS. ( EN )
Declaration of Conformity G3 compliance ( EN )

Dimensions


Image of D6034_size

Connections


RELATED PRODUCTS

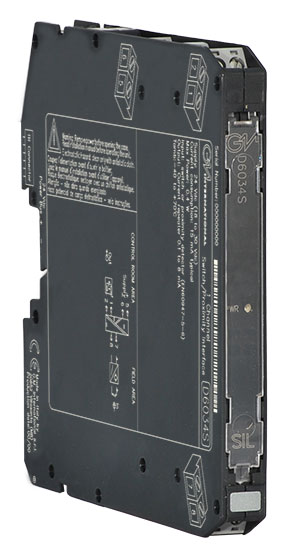

D6034S
