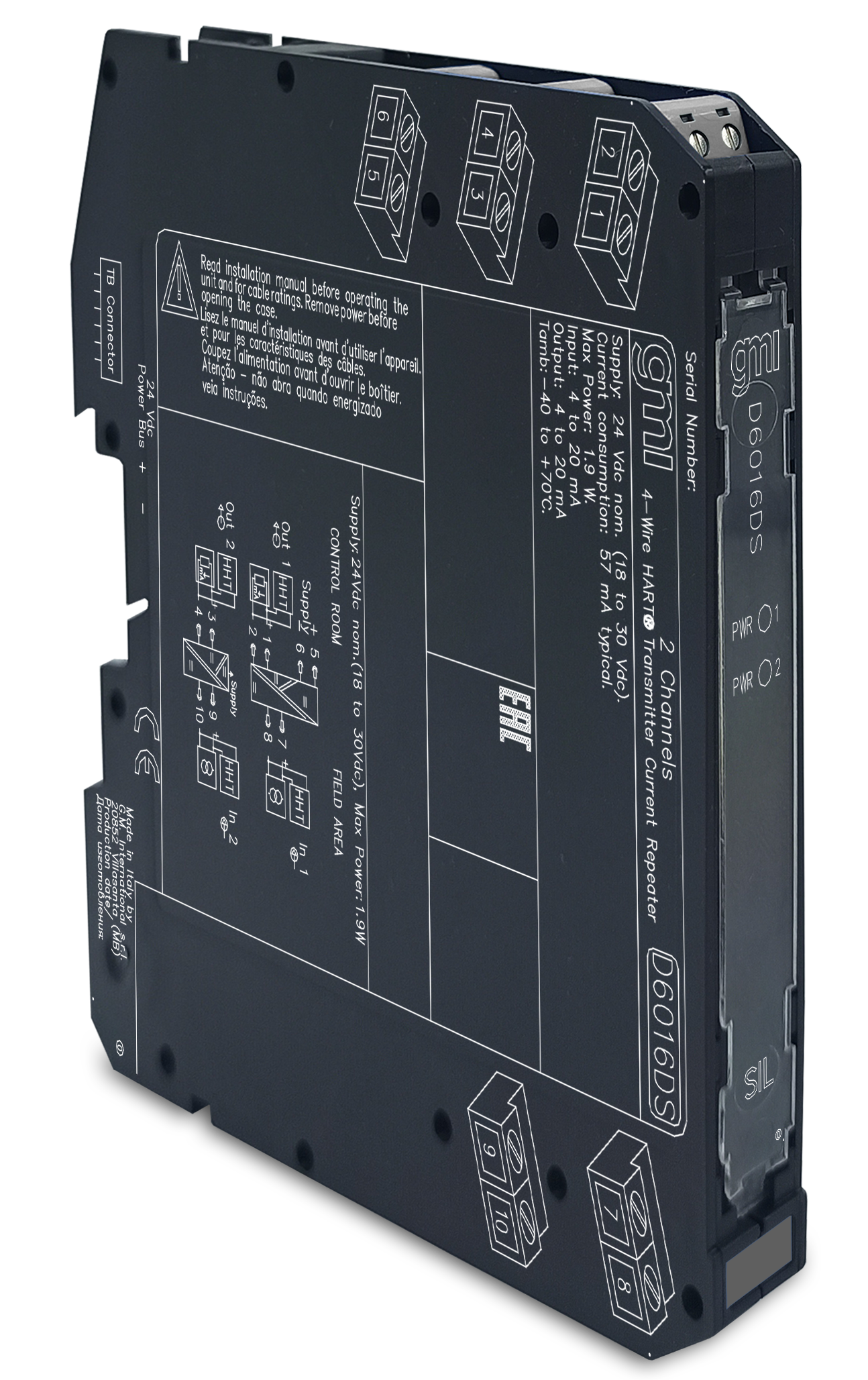

D6016DS
SIL3 2-Wire Active HART® Tx Current Repeater

The Current Repeater D6016 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It repeats a 2-wire active 4- 20 mA current signal input in floating circuit to drive a Safe Area load. The module allows bi-directional communication signals, for HART® devices.

FEATURES

  • SIL 3 / SC 3
  • 2 fully independent channels
  • 4-20 mA Source-Sink Output
  • HART® compatible
  • High Accuracy
  • Three port isolation, Input/Output/Supply
  • High Density, two channels per unit

Discover D6000


STATUS


   ACTIVE
Product lifecycle policy (EN)

Request a free and personalized quotation!

Contact us

Technical Data


Supply
Voltage 24 Vdc nom (18 to 30 Vdc), reverse polarity protected
Current Consumption 33 mA (D6016SS), 20 mA (D6016SK), 57 mA (D6016DS), 31 mA (D6016DK) @ 24 Vdc with 20 mA output, typical.
Power Dissipation 0.90 W (D6016SS), 1.00 W (D6016SK), 1.50 W (D6016DS), 1.80 W (D6016DK) @ 24 Vdc with 20 mA output on 250 Ω load and 24 Vdc output supply for sink models, typical.

Input
Type 4 to 20 mA (separately powered input, voltage drop ≤ 7 V), reading range 0 to 22 mA.
HART Impedance 225 Ω, typical.

Output
Type 4 to 20 mA.
Sink out voltage range 2 to 30 V.
Load range 0 to 500 Ω, with conventional Tx input 250 Ω nom (160 to 500 Ω), with smart Tx input.
Current limitation 24 mA (up to 450 Ω load) ≤ max current ≤ 26 mA.
Response time 20 ms (10 to 90 % step change).

Performance
Ref. Conditions 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.
Calibration accuracy ≤ ± 20 μA.
Linearity accuracy ≤ ± 20 μA.
Temp. influence ≤ ± 2 μA/°C.

Isolation
Test Voltage In/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.

Environmental conditions

Operating temperature temperature limits –40 to +70 °C.
Storage temperature temperature limits –45 to +80 °C.

Mounting
Type DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.
Weight about 135 g (D6016DS and D6016DK), 115 g (D6016SS and D6016SK).
Connection by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).
Dimensions Width 12.5 mm, Depth 123 mm, Height 120 mm.

Data Sheet


Datasheet of D6016 ( EN | IT | FR | PT | DE | ES | CN | JA )

Instruction Manual


Instruction Manual D6016 ( EN )
Safety Manual D6016 ( EN )

Certifications


Type Description Area Number Issued by Issue Date
SIL TUV IT 25 SIL 0609 A SIL Certificate Summary ( EN ) International TUV IT 25 SIL 0609 A TUV_SUD 2025-07-29

Declarations of Conformity


EU Declaration of Conformity for D6000 series ( EN | IT )
Declaration of Conformity G3 compliance ( EN )

Dimensions


Image of D6016_size

Connections


RELATED PRODUCTS


D6016DK

D6016DK

D6016SK

D6016SK

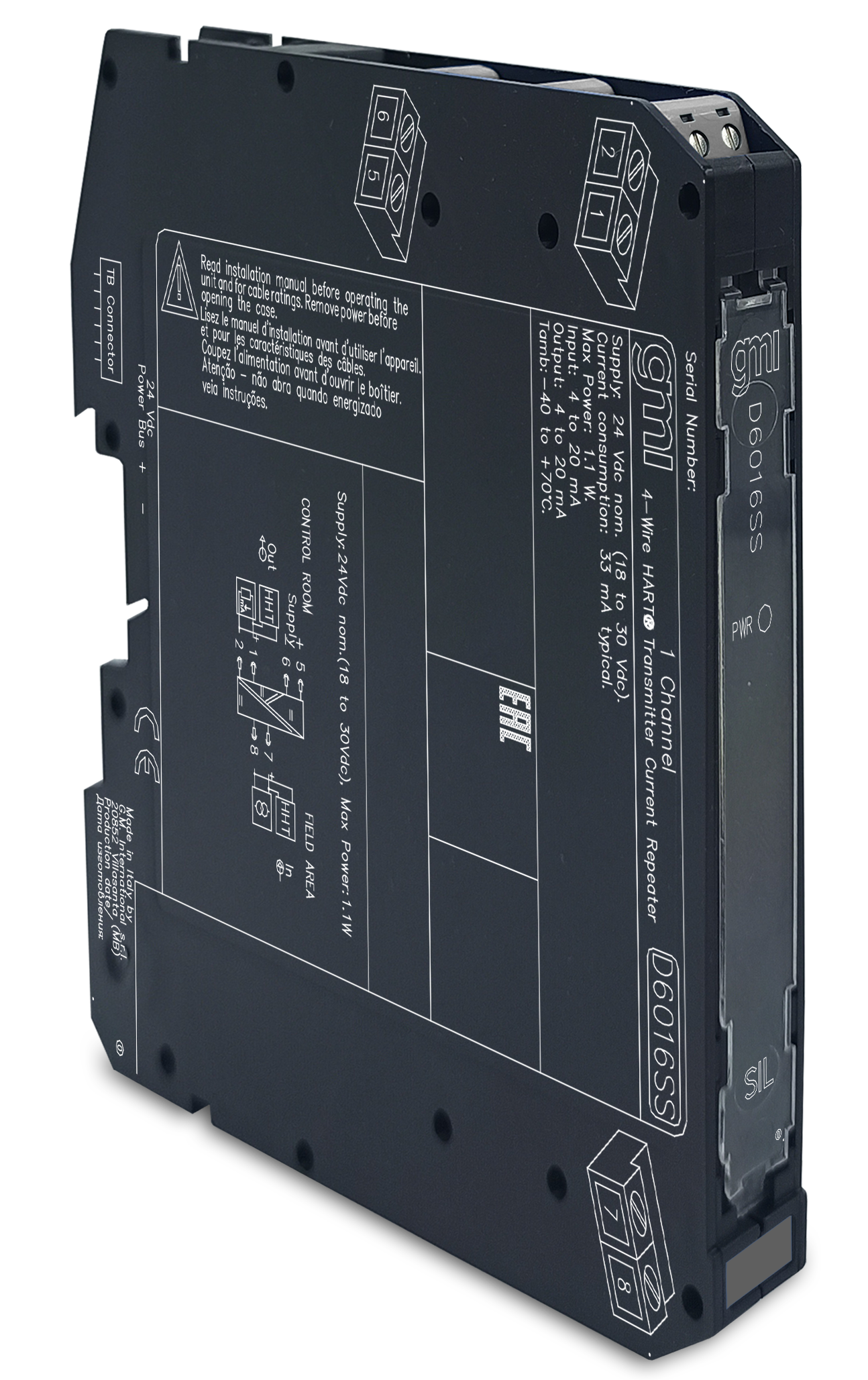

D6016SS
